Lifts

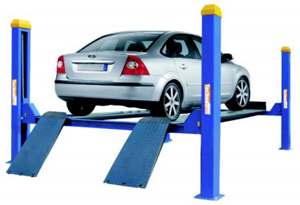

FPL-800WJ

FPL 800-WJ

FPL-800WJ is designed for Wheel Alignment, Tyre Changing. Checking & adjustiment of wheels. It can also be used for car maintenance jobs. The equipment comes with secondary lifting mechanism which enables the technician to perform the job with ease. It is featured with a uniue design, well-selected materials, novel appearance and advanced workmanship.

It is ideal equipment for maintenance, care, tyre-changing and comprhensive test, check and adjustment of each positioning parameter of the four wheels of all sorts of auto. Secondary lifting mechanism is equipped with automatic/manual device. Diamond plate runway surface has been provided.

Specifications


Model : FPL-800WJ
Lifting Capacity : 3.5Ton
Min. Ground Clearance : 150mm
Max. Ground Clearance : 1750mm
Power of Motor : 2.2KW
Power Supply : 440v/220v
Hydraulic : N46
Secondary lift height : 340mm
Secondary lift weight : 2000kg
Outer Dimension : 4610x3070x2118mm
Net Weight : 1100kg
