Lifts

GSL-800

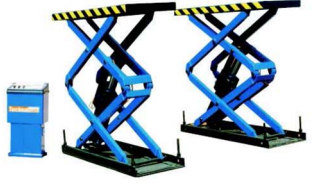

GSL 700

This lift can be used for maintenance and checking all kinds of cars including baby trucks less than 3.5T. It is convenient and flexible to operate. It can be concealed in ground to ensure against the trouble from movement of the vehicles. It is a requisite device for car maintenance.

Features :

  • It ensures smooth operative synchronization, driven by dual synchronous hydraulic cylinders.
  • Adjustable platform length suitable for a variety of cars is provided.
  • Open middle space for easy access exists.
  • Wide scissor span, when fully extended, has been added.

Specifications


Model : GSL 800
Lifting Capacity : 3.5 Ton
Lift Height : 2050mm
Rise Time : 45s
Power of Motor : 2.2KW
Power Supply : 440v/220v
Hydraulic : N46
Net Weight : 850kg
