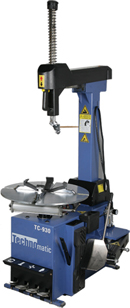

Tire Changer

Tc-930


Tyre Changer
  • With tilting column, pneumatic locked at optional position
  • Inside and outside of clamps totally protected by plastic guards to prevent damage to the most delicate rims
  • Turntable with two pneumatic cylinders
  • Manually-operated tilting arm support column with high tensional rigidity in all working positions
  • M/D Head with interchangeable plastic parts to protect rims
  • Bead breaking unit with pneumatic cylinder
  • Ergonomic pedal control unit to make the working procedure quicker and safer
  • Manometer for inflating pressure control equipped with deflating push button

Specifications


Power Supply : 110V/220V1Ph 220V/380V3Ph
Motor Power : 0.75~1.1KW
Bead-remove cylinder : 2500Kg
Operating pressure : 0.8~1MPa
Rim diameter : 255~560mm(10"~22")
Rim Width : 76~410mm(3"~16")
Max wheel diameter : 1000mm
N.W/G.W : ≤190r.p.m
Noise : <70dB
Package Size : 1200*1040*1100mm
