Welding Machine

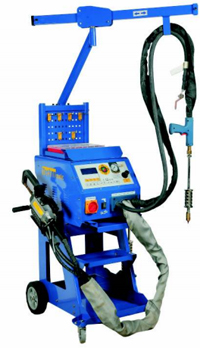

Spot Welder TEC-9900

spot welder tec-9900

Product Description

Tec-9900 Auto Plate Renovated Machine with initiative technology is different from the other repair machines . Features include: according to the input alternating current 380V, inner operation voltage regulated automatically by micro processor control, digital large blue light LCD displays Chinese-English showing different operation cases clearly; Unique sliding welding torch rake with front-back flexible turning 360Degree, 10 modes preset memory program, infinitely regulate current and integrated current reading with high accuracy. FY-9900 is a synthesis machine with multifunction for different automobile plates repairing.

Feature

  • Voltage monitor automatically
  • Over-heat protection
  • Repair functions for different steels auto body including stainless steel and other materials
  • One side welding and double sides welding can be chosen
  • Welding function for different plates such as heat, meson, vertical pulling, spot welding, flatten, waveform line, stud, OT type washer and triangle washer
  • Possess gas filtrate and regulate function
  • Unique cable rack, have front-back flexible function, can turn 3600 degree
  • Triangle washer direct spot welding repair
  • LCD digital screen displays Chinese and English
  • Large puller and waveform welding
  • Equipped with infinitely current regulate
  • 10 modes memory function
  • Unique double sides welding electrode for option

Specifications


Input Voltage : 380 V or 220V  50/60Hz
Input Power : 26.8 KVA
Input current : 60 A
Instand max. current : 9900 A
One side welding thickness : 1.0+1.5 MM
The thickness of double-side welding : 2.5+2.5 MM
Operation way : Electronic timer continuity
Dimension : 680mm*600mm*1160mm
Input gas source pressure : 6-10kg
Time regulation system : 0-99ms Time Setting available
Current adjustment : Infinitely
Power cable length : 2500+2500, 2300+1900 MM
Vacuum suction : 180 KG
Claw puller : Available
Vertical pull welding torch : Available
Dimension : 920×600×1780 MM
Weight : 138 KG
