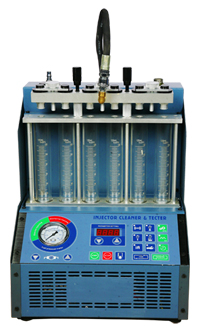

Injector Cleaner
TSI-6501
Functions
1. Direct flush
2. Reverse flush
3. Ultrasonic cleaning
4. On-vehicle cleaning
5. Uniformity & Sprayability test
6. Leakage test
7. Injecting flow test
8. Auto cleaning-test function
Features
- Stepless pressure regulation technology brings a small oil pressure fluctuation and wide tuning range
- Clean and test both high resistance and low resistance injectors
- Solenoid valve controls drainage of oil
- Graphic interface
- LED of the background light
- Optional adaptor kit package to cover all injectors of different car makes
Specifications
Power Supply
:
AC220V~50/60Hz, AC110V~50/60Hz
Input power
:
350W
Pressure
:
0~7bar
Flow test accuracy
:
±2%
Simulated RPM range
:
0~10000rpm, Step:10rpm
PW range
:
0.1~30ms, Step: 0.1ms
Timing range
:
1~30min
Ultrasonic timing range
:
1~15min
Gross weight
:
78Kg
